Blockchain Security & Crypto Forensics: Transaction Analysis & Investigation Framework

Blockchain's immutability and transparency create a permanent forensic trail, but sophisticated obfuscation techniques require advanced investigative methods. This comprehensive guide covers security vulnerabilities, forensic methodologies, and investigative tools across major blockchain ecosystems.

Blockchain Security & Crypto Forensics

Transaction Analysis & Investigation Framework

Blockchain Security and Forensics Overview

Blockchain Security & Crypto Forensics: Transaction Analysis & Investigation Framework

Part 1: Blockchain Security Architecture & Vulnerabilities

Layer 1 (Consensus Layer) Threats – 51% Attacks

Ethereum Classic: 51% attack cost: ~$550k (2020)
Bitcoin Gold: Double-spend of $18M (2018)
Current 51% attack costs (24h):
- Bitcoin: $6.8B (ASIC rental)
- Ethereum: $34B (staking equipment)
- Solana: $6.9M (stake concentration)

Smart Contract Layer Exploits (2020-2023)

Total Losses: $8.4B (2020-2023)

Attack Vector	Losses	Percentage
Access Control Violations	$2.9B	34.5%
Flash Loan Attacks	$1.5B	17.9%
Reentrancy	$1.1B	13.1%
Price Oracle Manipulation	$890M	10.6%
Logic Errors	$720M	8.6%

Cross-Chain Security Landscape

Bridge Exploits (2021-2023): $2.5B+ stolen

Ronin Bridge (Axie): $625M – Private key compromise
Wormhole: $326M – Signature verification bypass
Nomad Bridge: $190M – Improper initialization
Harmony Horizon: $100M – Multi-sig compromise
Poly Network: $611M (recovered) – Contract vulnerability

Common Bridge Attack Patterns:

Signature verification flaws: 42%
Administrative key compromise: 31%
Validation logic errors: 18%
Relayer manipulation: 9%

Part 2: Crypto Forensics Methodology

Investigative Framework (OSINT + Chain Analysis)

Phase 1: Initial Transaction Analysis

Tools: Etherscan, Blockchain.com, Solscan, Snowtrace. Data points: transaction hash, block height/timestamp, from/to addresses, value, gas used/price, input data, event logs.

Phase 2: Address Clustering & Entity Identification

Techniques: Common Input Ownership Heuristic, Change Address Detection, Address Reuse Patterns, Multi-input Transaction Analysis, Temporal Analysis.

Phase 3: Fund Flow Mapping

Visualization Tools: Maltego (Blockchain transforms), GraphSense, Elliptic AML Toolkit, TRM Labs Reactor, Chainalysis Reactor.

Phase 4: Behavioral Analysis & Attribution

Indicators: transaction timing patterns, gas price strategies, address generation patterns, DApp interactions. Attribution via IP correlation, metadata analysis, exchange KYC, subpoenas.

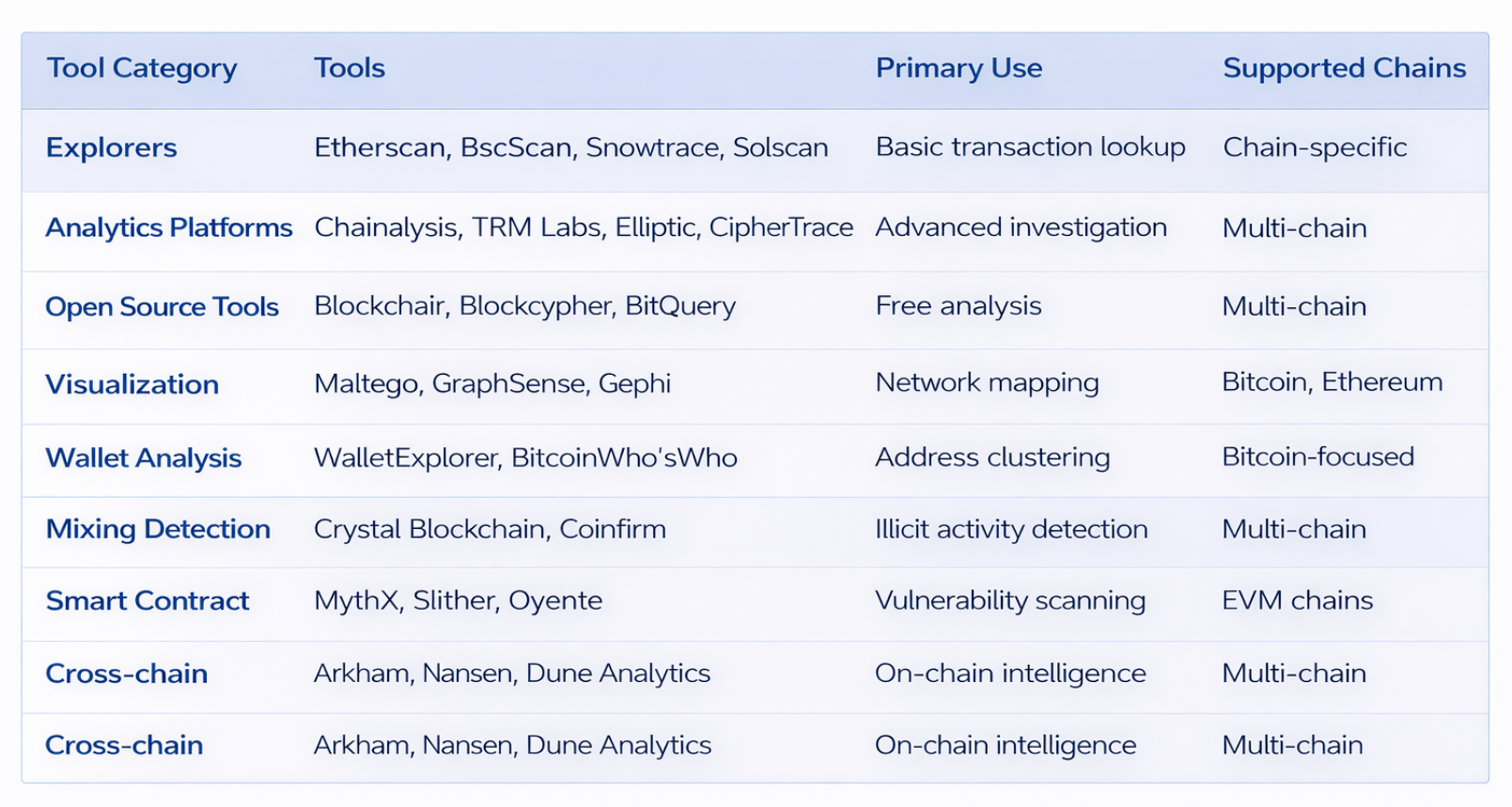

Forensic Tools Matrix

Part 3: Transaction Trail Analysis Techniques

De-anonymization Methods

Statistical Analysis – Transaction Graph Analysis:

Degree centrality (connectedness)
Betweenness centrality (intermediary role)
Clustering coefficient (community detection)
PageRank algorithm (importance scoring)

Heuristic-based Clustering:

Multi-input Heuristic: If multiple inputs in a transaction, they're controlled by same entity
Change Address Detection: Outputs not going to known addresses likely belong to sender
Address Reuse: Entities reusing addresses create linkage points
Peel Chain Detection: Series of transactions with small leftover amounts

Privacy Coin Analysis – Monero (XMR)

Forensic Approaches: Temporal analysis, amount analysis, chain reaction, exchange correlation. Recent breakthrough: Fluffy Spider attack (2020) with 96% accuracy for ≥5 mixins.

Zcash (ZEC) Forensics

Investigation techniques: pool migration analysis (transparent↔shielded), metadata analysis (tx size, timing), known entity interaction patterns.

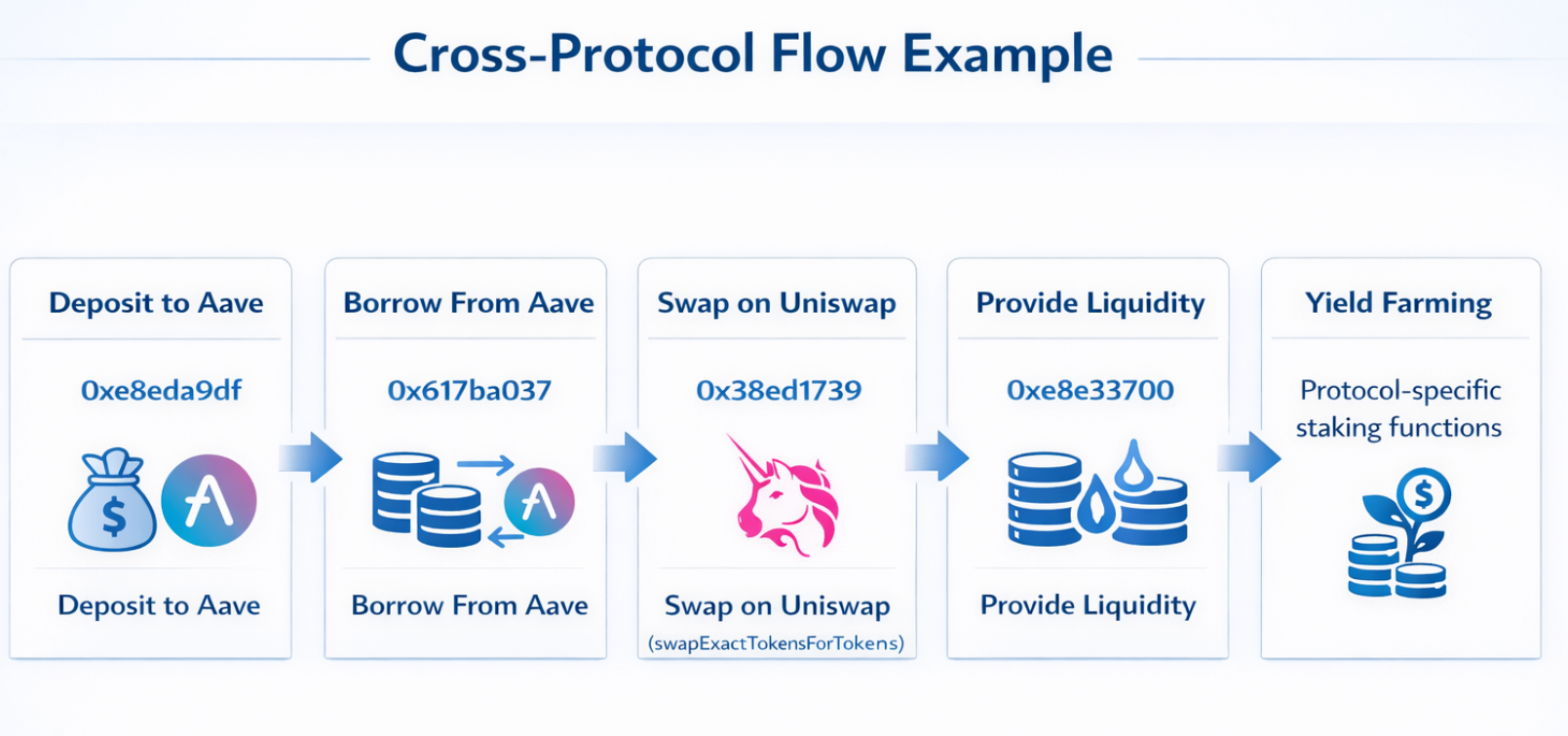

Smart Contract Transaction Forensics

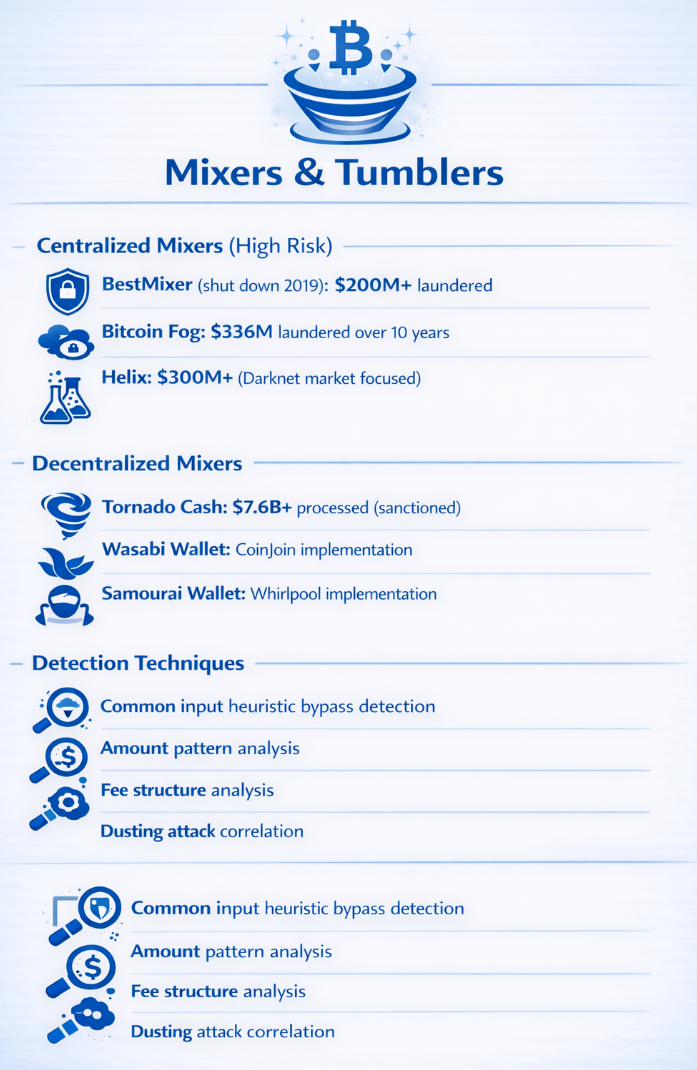

Part 4: Money Laundering Techniques & Counterforensics

NFT-Based Money Laundering – Wash Trading Patterns

Indicators:

Same seller/buyer addresses
Rapid buy-sell cycles
Inflated prices with self-dealing
Sybil armies for fake liquidity

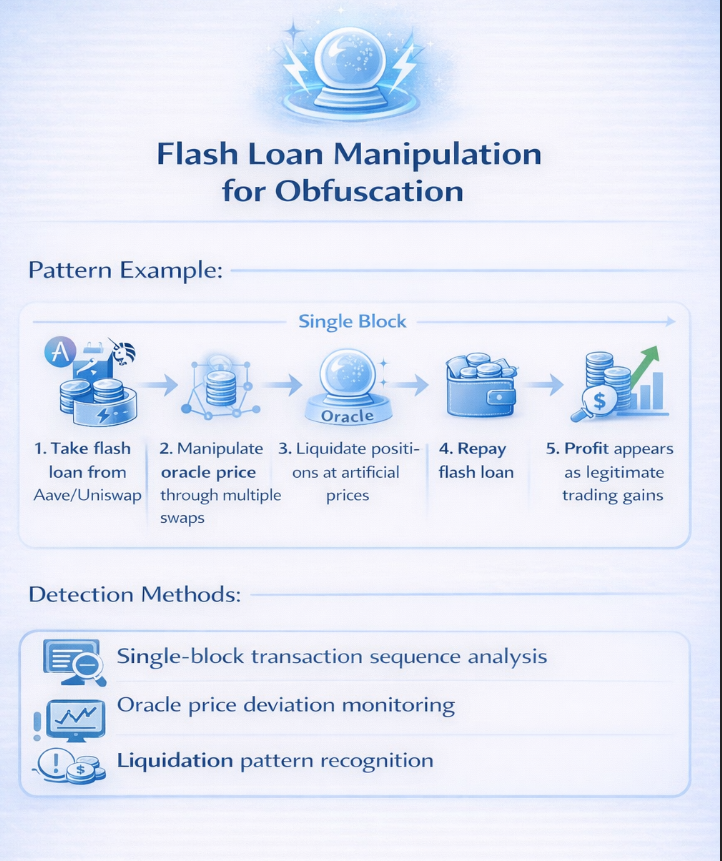

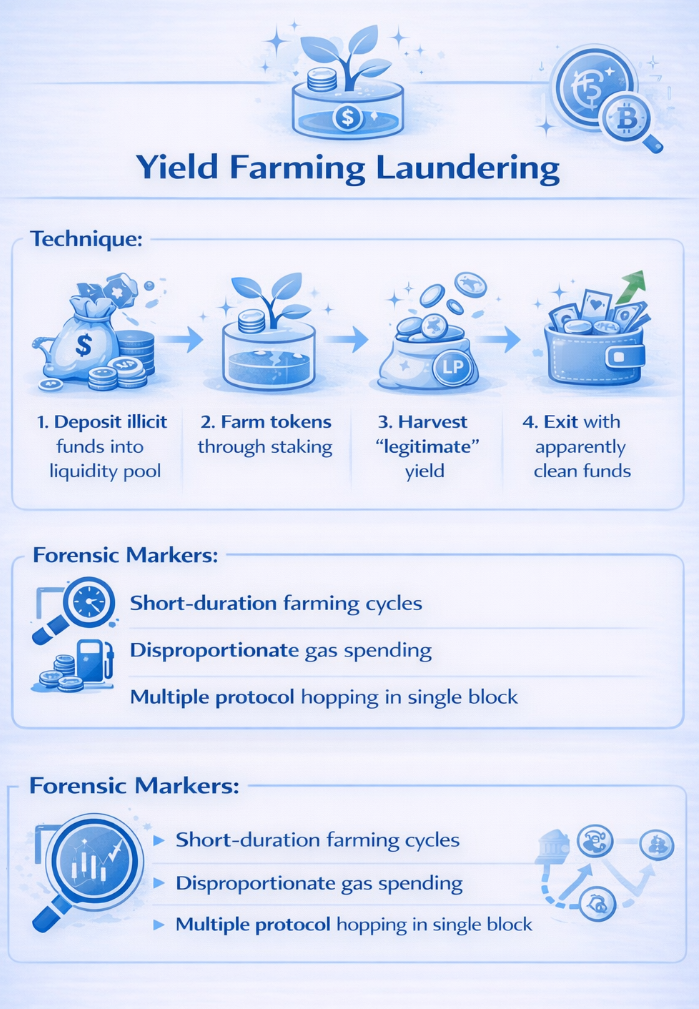

DeFi-Based Laundering

Part 5: Investigative Toolkit & Technical Implementation

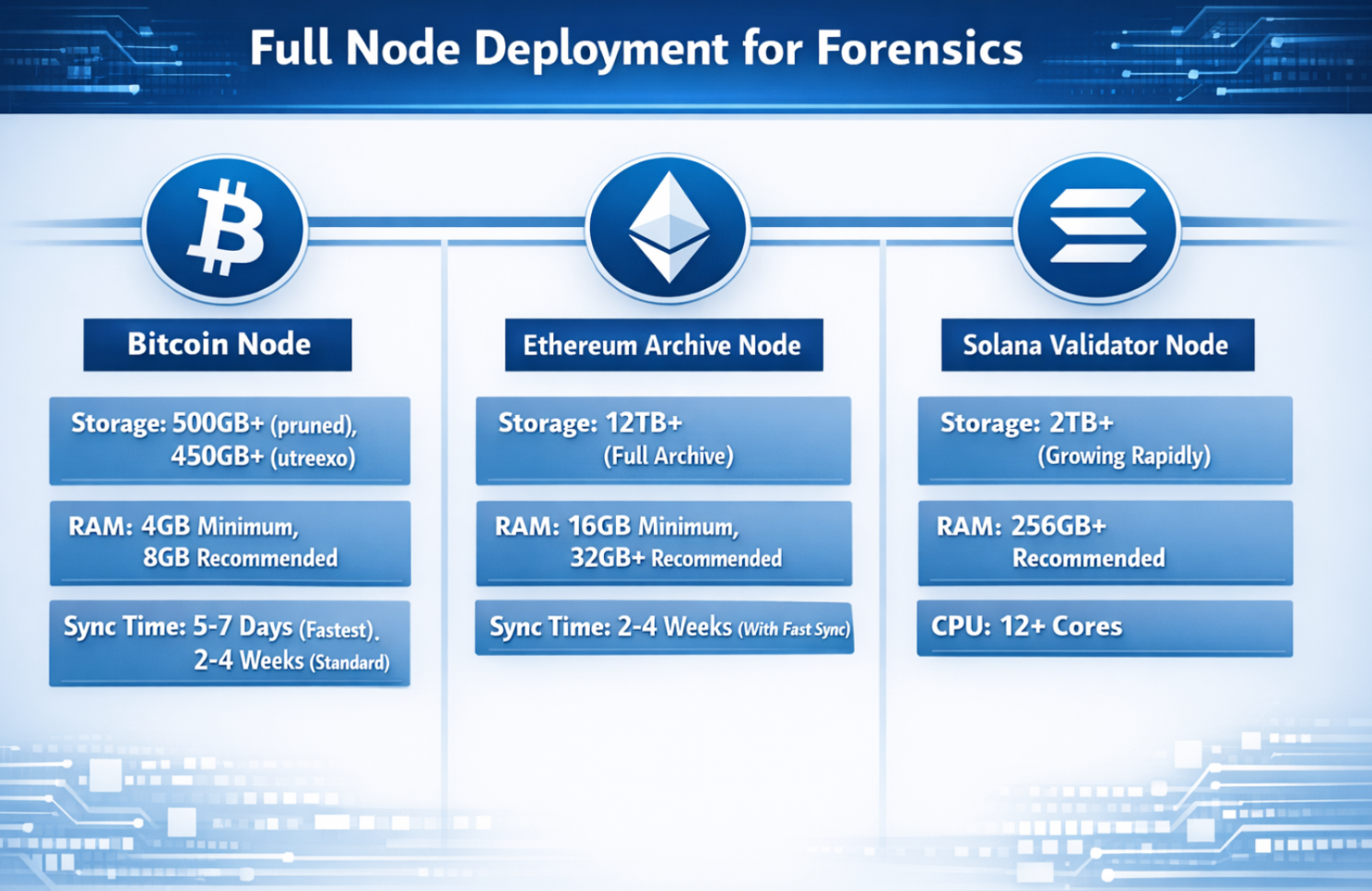

Blockchain Data Acquisition

API Providers: Alchemy, Infura, QuickNode, Blockdaemon, Chainstack, Tenderly, Covalent.

Python Forensic Toolkit Example

from web3 import Web3
import pandas as pd
import networkx as nx
from datetime import datetime

class BlockchainForensics:
    def __init__(self, rpc_url):
        self.w3 = Web3(Web3.HTTPProvider(rpc_url))
        self.graph = nx.DiGraph()

    def trace_transaction_flow(self, tx_hash, depth=3):
        tx = self.w3.eth.get_transaction(tx_hash)
        receipt = self.w3.eth.get_transaction_receipt(tx_hash)
        flow_data = {
            'from': tx['from'],
            'to': tx['to'],
            'value': self.w3.fromWei(tx['value'], 'ether'),
            'gas_used': receipt['gasUsed'],
            'gas_price': self.w3.fromWei(tx['gasPrice'], 'gwei'),
            'timestamp': datetime.fromtimestamp(
                self.w3.eth.get_block(tx['blockNumber'])['timestamp']
            )
        }
        self.graph.add_edge(tx['from'], tx['to'],
                          weight=float(tx['value']),
                          tx_hash=tx_hash.hex())
        return flow_data

    def detect_mixer_patterns(self, address):
        transactions = self.get_all_transactions(address)
        mixer_indicators = {
            'fixed_amounts': self.check_fixed_amounts(transactions),
            'rapid_movement': self.check_temporal_patterns(transactions),
            'common_mixer_addresses': self.check_known_mixers(transactions),
            'round_number_txs': self.count_round_numbers(transactions)
        }
        return mixer_indicators

    def cluster_addresses(self, address_set):
        clusters = {}
        for address in address_set:
            input_txs = self.get_transactions_with_input(address)
            for tx in input_txs:
                for inp in tx['inputs']:
                    if inp not in clusters:
                        clusters[inp] = set()
                    clusters[inp].add(address)
        return self.merge_clusters(clusters)

Graph Database Implementation (Neo4j for Blockchain)

// Create transaction nodes and relationships
CREATE (tx:Transaction {
  hash: '0xabc...',
  value: 2.5,
  gas_price: 45,
  timestamp: 1634567890
})

CREATE (from:Address {address: '0x123...'}),
       (to:Address {address: '0x456...'})

CREATE (from)-[:SENT {
  amount: 2.5,
  tx_hash: '0xabc...'
}]->(tx)-[:RECEIVED {
  amount: 2.5,
  tx_hash: '0xabc...'
}]->(to)

// Query for suspicious patterns
MATCH path = (a:Address)-[:SENT*3..5]->(b:Address)
WHERE a.risk_score > 0.8 AND b.risk_score > 0.8
RETURN path
LIMIT 100;

Machine Learning for Anomaly Detection

from sklearn.ensemble import IsolationForest
from sklearn.preprocessing import StandardScaler
import numpy as np

class TransactionAnomalyDetector:
    def __init__(self):
        self.scaler = StandardScaler()
        self.model = IsolationForest(
            contamination=0.1,
            random_state=42,
            n_estimators=100
        )

    def extract_features(self, transactions):
        features = []
        for tx in transactions:
            feature_vector = [
                tx['value'], tx['gas_price'], tx['gas_used'],
                self.time_of_day(tx['timestamp']),
                self.day_of_week(tx['timestamp']),
                len(tx['input_data']) if tx['input_data'] else 0,
                self.get_address_age(tx['from']),
                self.get_transaction_frequency(tx['from'])
            ]
            features.append(feature_vector)
        return np.array(features)

    def detect_anomalies(self, transactions):
        features = self.extract_features(transactions)
        scaled_features = self.scaler.fit_transform(features)
        self.model.fit(scaled_features)
        predictions = self.model.predict(scaled_features)
        anomalies = [tx for tx, pred in zip(transactions, predictions)
                    if pred == -1]
        return anomalies

Part 6: Legal & Regulatory Framework

Global Regulatory Landscape

United States (FinCEN, SEC, CFTC):

Travel Rule: >$3,000 transfers require beneficiary info
SAR Reporting: Suspicious Activity Reports required
OFAC Sanctions: SDN List compliance (Tornado Cash sanction)

European Union (MiCA, 5AMLD, 6AMLD):

Markets in Crypto-Assets (MiCA): 2024 implementation
5AMLD: VASP registration, enhanced due diligence
6AMLD: Extended liability, stricter penalties

Law Enforcement Tools & Protocols

Blockchain Analytics for LE: Chainalysis Reactor (90%+ LE agencies), TRM Labs (80+ government agencies), Elliptic (60+ agencies).

Asset Recovery Success Rates (2022):

Total stolen: $3.8B
Recovered: $1.9B (50% recovery rate)
Highest recovery: Nomad Bridge (90%+)
Lowest recovery: Ronin Bridge (<10%)

Part 7: Case Studies & Real-World Investigations

Bitfinex Hack 2016 ($4.5B Bitcoin Recovery 2022)

Forensic Techniques: blockchain clustering, exchange KYC correlation, cloud storage metadata analysis, transaction timing correlation. Outcome: DOJ arrested couple, seized 94,000 BTC.

Poly Network Hack 2021 ($611M, Fully Recovered)

Attack vector: contract vulnerability. Recovery: hacker communicated via embedded transactions, returned funds gradually, received white hat bounty.

Ronin Bridge Hack 2022 ($625M)

Attack: compromised 5/9 multi-sig validator nodes via social engineering. Attribution: North Korean Lazarus Group, used Tornado Cash mixer. US Treasury sanctioned mixer addresses.

The Twitter Hack 2020 Investigation

Attack: high-profile Twitter accounts compromised, Bitcoin scam addresses posted, $118,000 received. Forensic analysis identified 3 primary addresses, exchange withdrawals traced. Outcome: Florida teenager arrested, funds seized.

Part 8: Future Trends & Emerging Threats

Quantum Computing Threats

Vulnerable primitives: ECDSA (Bitcoin/Ethereum signatures), RSA. Timeline: 2025-2030 early advantage possible, 2030-2040 practical quantum computers expected. Migration strategies: post-quantum cryptography, quantum-resistant signatures, quantum key distribution.

AI/ML in Crypto Forensics

Emerging applications: predictive analytics, automated investigation, deep learning for graph neural networks, neural style detection for mixing patterns.

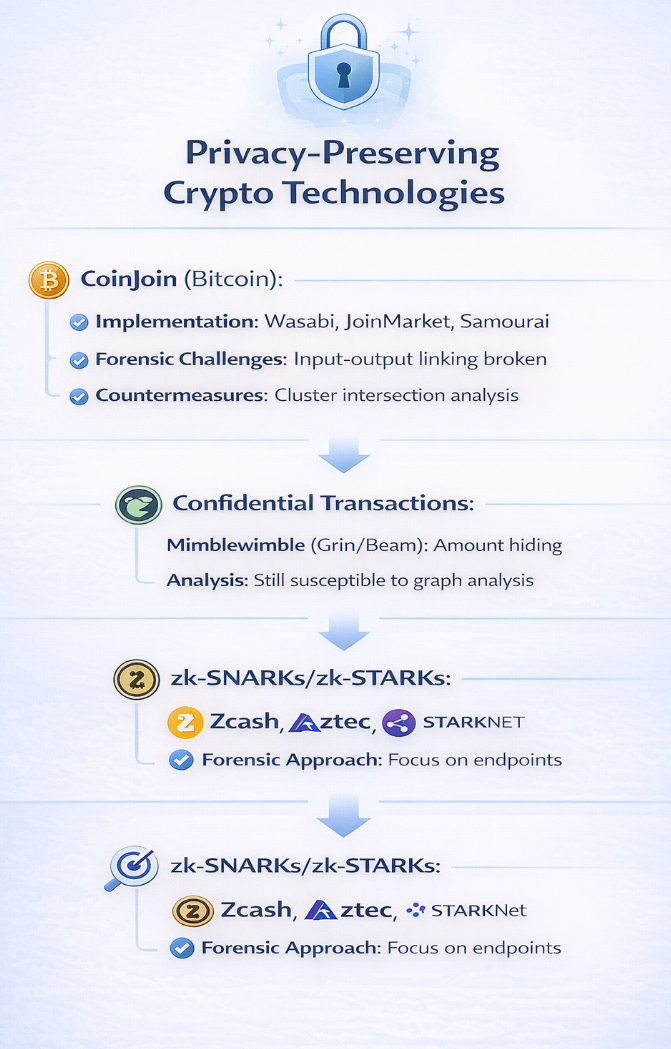

Privacy-Enhancing Technology Evolution

Next-generation: Fully Homomorphic Encryption (FHE), Multi-Party Computation (MPC), Zero-Knowledge Everything (zkEVMs). Forensic challenges: complete transaction privacy, only proof verification possible.

Part 9: Professional Certifications & Training

Industry Certifications

Chainalysis Reactor Certification (CRC)
CipherTrace Examiner Certification (CTEC)
Blockchain Forensic Investigator (BFI)

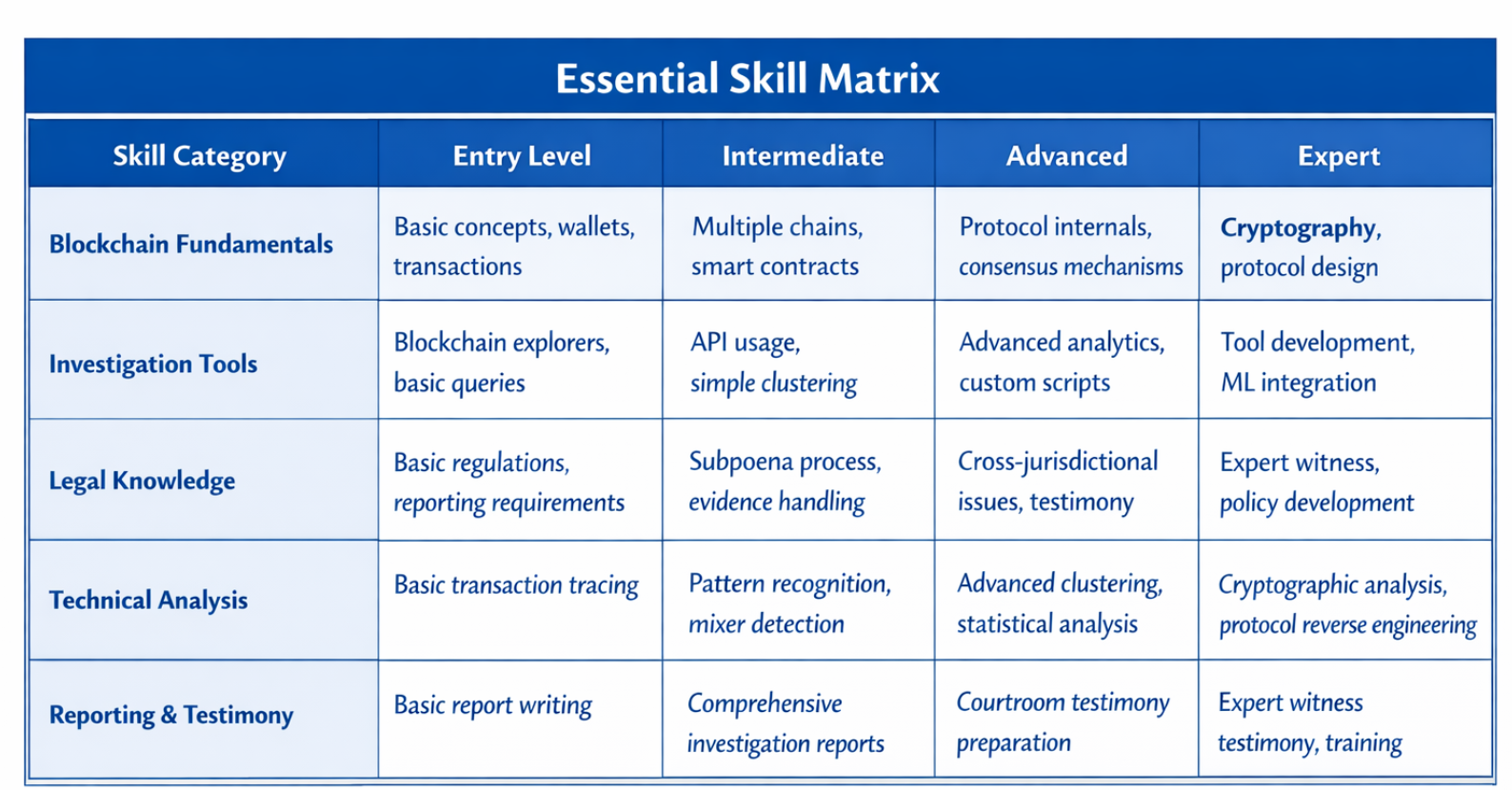

Essential Skill Matrix

Part 10: Best Practices & Operational Framework

Investigative Best Practices

Evidence Preservation Protocol:

Capture screenshots with timestamp, record blockchain explorer URLs
Hash all digital evidence, use write-blockers, maintain logs

Multi-Agency Collaboration Framework:

SARs, FinCEN Exchange meetings, joint task forces
Standardized data formats, secure communication, jurisdictional agreements

Proactive Defense Strategies

Exchange & VASP Security: real-time screening, customer risk scoring, known bad address screening, KYC/CDD enhancements, multi-sig wallets, rate limiting, address whitelisting.

Individual User Protection: hardware wallet, multi-factor authentication, separate addresses, regular smart contract audits.

Conclusion

The Evolving Battlefield: Blockchain security and crypto forensics represent a constantly evolving cat-and-mouse game. Key takeaways:

Sophistication Gap is Narrowing: Forensic tools are catching up
Regulation is Accelerating: Global frameworks maturing
Cross-chain is the New Frontier: Investigations must span ecosystems
Professionalization of Field: Certifications emerging

The field requires continuous learning and adaptation. Success depends on technical expertise, legal knowledge, and investigative creativity working in concert.

Disclaimer: The content shared here is strictly for learning and research purposes to understand the fundamentals and advanced concepts of crypto forensic tools and investigation methodology. This does not encourage or support any unauthorized blockchain monitoring, hacking, or illegal activity.
